Bathroom exhaust fan wiring is one of those details that gets overlooked until something goes wrong. You may not think twice about flipping that fan switch after a shower, but the wiring behind it plays a real role in protecting your home from moisture damage, electrical hazards, and failed inspections. When done correctly, it keeps your bathroom safe, dry, and fully up to code.
In this guide, we will break everything down in plain English. You will learn what the installation involves, what code requirements apply, and why getting the wiring right matters more than most homeowners realize.
What Is Bathroom Exhaust Fan Wiring and Why Does It Matter?
Bathroom exhaust fan wiring is the process of connecting a ventilation fan to your home’s electrical system so it can safely remove moisture and stale air from the bathroom. The fan itself pulls humid air out of the room and directs it outside through a duct, preventing mold growth, wood rot, and long-term structural damage.
This matters well beyond air quality. Improperly wired fans in wet environments create serious shock hazards, especially near showers and bathtubs. Code violations in this area can also trigger inspection failures and create liability issues during home sales. Getting the wiring right from the start is always the smarter choice.
Bathroom Exhaust Fan Wiring Requirements You Should Know
Before any fan is mounted, the wiring must meet specific standards for safety and code compliance. Per the International Residential Code (IRC), bathrooms without an operable window must have an exhaust fan with a minimum airflow rating of 50 CFM. Exhaust fans installed within the bathtub or shower zone must be GFCI-protected per NEC guidelines and manufacturer requirements.
Fans with built-in heaters or heat lamps require their own dedicated 20-amp branch circuit. Standard exhaust fans without heaters may share a circuit with the bathroom lighting, provided load calculations allow it. All ductwork must vent directly to the outdoors and must never terminate into an attic, crawl space, or other interior area of the home per IRC Section 1501.1.
Understanding Your Bathroom Fan Wiring Options
Shared Circuit vs. Dedicated Circuit
A standard exhaust fan without a heater can typically share the bathroom lighting circuit as long as the circuit load permits it. A fan that includes a heater, heat lamp, or high-wattage combination unit requires its own dedicated 20-amp circuit. Mixing a heater fan onto a shared circuit is one of the most common code violations inspectors find in residential bathrooms.
Switch Wiring Configurations
Some homeowners wire the exhaust fan and bathroom light to a single switch. Others prefer separate switches so the fan can run independently after a shower. A third option is a timer switch, which keeps the fan running for a set period after you leave the room. Each configuration requires slightly different wiring, and all of them must use proper gauge wire rated for the circuit.
Fan and Light Combo Units
Combination fan and light units are popular in smaller bathrooms. These units share a single housing but may require separate switch legs to control the fan and light independently. When wiring a combo unit, the electrician must account for both loads when sizing the circuit and the wire gauge.
NEC and IRC Code Requirements for Bathroom Fan Wiring
The National Electrical Code (NEC) and the International Residential Code (IRC) together set the standards that govern bathroom exhaust fan installations.
GFCI Protection in Wet Locations
Per NEC Section 314.15, any exhaust fan installed above a bathtub or shower must be connected to a GFCI circuit and must be listed by the manufacturer for installation in that wet location. This protects against electrical shock if moisture reaches the fan’s electrical components. GFCI protection is typically provided through a GFCI breaker at the panel rather than a wall receptacle. You can review the full NEC wet location requirements at NFPA.org.
Wire Gauge and Circuit Sizing
Most standard exhaust fans operate on a 15-amp circuit and require 14 AWG wire. Fans with heaters must be on a dedicated 20-amp circuit wired with 12 AWG wire. Using undersized wire on a heater fan circuit is a fire hazard and will fail inspection.
Duct and Ventilation Code Requirements
While the NEC focuses on the electrical side, the IRC governs duct sizing and termination. Ducts must be properly sized for the fan’s CFM rating, insulated where required, and terminated at an exterior wall or roof cap. Exhausting into an attic violates IRC Section 1501.1 and creates conditions for mold and structural decay.
The Bathroom Exhaust Fan Installation Process: What to Expect

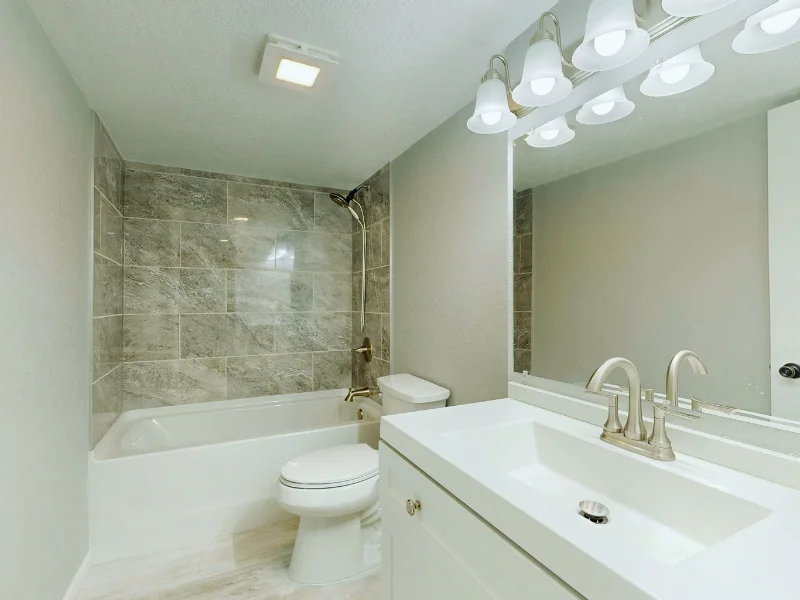

Step 1 — Planning and Placement The electrician determines the best fan location, typically centered on the ceiling or positioned directly above the shower. Placement affects duct routing, circuit access, and how effectively the fan removes moisture from the room.
Step 2 — Circuit Evaluation The existing bathroom circuit is evaluated to confirm it can support the fan load. If a heater fan is being installed or the existing circuit is already at capacity, a new dedicated circuit will be run from the panel.
Step 3 — Wiring the Fan The fan is connected to the circuit using properly sized wire. Switch legs are run to the wall switch location. If separate switches are needed for the fan and light, two switch legs must be run.
Step 4 — Duct Connection The duct is connected to the fan housing and routed to an exterior termination point. The duct is secured, insulated where it passes through unconditioned spaces, and sealed at all joints to prevent moisture from leaking into wall or ceiling cavities.
Step 5 — Testing and Inspection The fan is tested for proper operation and airflow. In most jurisdictions, new fan installations require a permit and inspection, especially when new circuit work is involved.
Common Installation Mistakes to Avoid
Skipping GFCI Protection Over Tubs and Showers
Installing a fan above a tub or shower without GFCI protection is one of the most dangerous and most common violations inspectors encounter. Even if the fan appears to work fine, an unprotected circuit in a wet location creates a serious shock hazard that no homeowner should accept.
Venting the Fan Into the Attic
It may seem easier to terminate the duct in the attic rather than running it all the way to an exterior wall. But this violates IRC Section 1501.1 and pumps warm, humid air directly into your attic structure, creating ideal conditions for mold growth and wood decay over time.
Using the Wrong Wire Gauge
Connecting a heater fan to a 15-amp circuit with 14 AWG wire is a code violation and a fire risk. Always match wire gauge and breaker size to the fan’s actual load requirements, including any built-in heating elements.
Wiring the Fan to the Receptacle Circuit
The 20-amp small appliance circuit that serves bathroom receptacles cannot also power exhaust fans or lighting per NEC 210.11(C)(3). Tapping the fan into the receptacle circuit is a frequent DIY error that fails inspection and can overload the circuit during peak usage.
When to Call a Licensed Electrician
Proper bathroom exhaust fan wiring involves more than running a wire to a switch. It requires evaluating your existing circuit capacity, understanding GFCI requirements for wet locations, sizing the duct correctly, and ensuring the entire installation meets both NEC and IRC standards.
If your fan is being installed in a new bathroom, replacing an older unit with a heater combo, or if your bathroom has no existing exhaust fan at all, these situations all involve circuit work that belongs in the hands of a licensed electrician. Permits and inspections are typically required, and a professional ensures everything is done safely and correctly the first time.
Final Thought
Bathroom ventilation is a critical part of any home’s electrical and moisture management system. From proper circuit sizing to GFCI protection and correct duct termination, every step of the process affects both safety and long-term performance.
If you are planning to add or replace a bathroom exhaust fan, it is best to consult a licensed electrician before starting. A professional can evaluate your existing wiring, recommend the right fan for your bathroom size, and make sure the entire installation meets code from the circuit all the way to the exterior vent cap. Contact us today to schedule an evaluation or discuss your bathroom wiring needs. Doing it right today keeps your bathroom safe and dry for years to come.
FAQs
1. Does a bathroom exhaust fan need its own circuit?
A standard fan without a heater can typically share the bathroom lighting circuit. Any fan with a built-in heater or heat lamp requires its own dedicated 20-amp circuit per NEC guidelines.
2. Does a bathroom exhaust fan need GFCI protection?
If the fan is installed above a bathtub or shower, GFCI protection is required. This is typically provided by a GFCI breaker at the panel rather than a wall outlet.
3. Can I vent my bathroom exhaust fan into the attic?
No. IRC Section 1501.1 requires all bathroom exhaust fans to vent directly to the outdoors. Venting into an attic creates moisture buildup that leads to mold and structural damage.
4. What size wire do I need for a bathroom exhaust fan?
Most standard fans require 14 AWG wire on a 15-amp circuit. Fans with heaters require 12 AWG wire on a dedicated 20-amp circuit. Always verify the fan’s electrical requirements before purchasing wire.
5. Do I need a permit to install a bathroom exhaust fan?
In most jurisdictions, any installation that involves new circuit wiring requires a permit and inspection. Check with your local authority having jurisdiction (AHJ) or consult a licensed electrician before starting work.
