Electrical Load Calculation in Missouri: A Complete Guide

When it comes to ensuring that your home’s electrical system is both safe and efficient, understanding how to perform an electrical load calculation Missouri is crucial. Electrical load calculations determine how much electrical power your home or building needs to function properly without causing safety hazards. Whether you’re building a new home, upgrading your service panel, or adding major appliances, knowing your electrical load is essential. In this article, we’ll break down what electrical load calculations are, why they matter in Missouri, and how you can perform them in accordance with local and national codes.

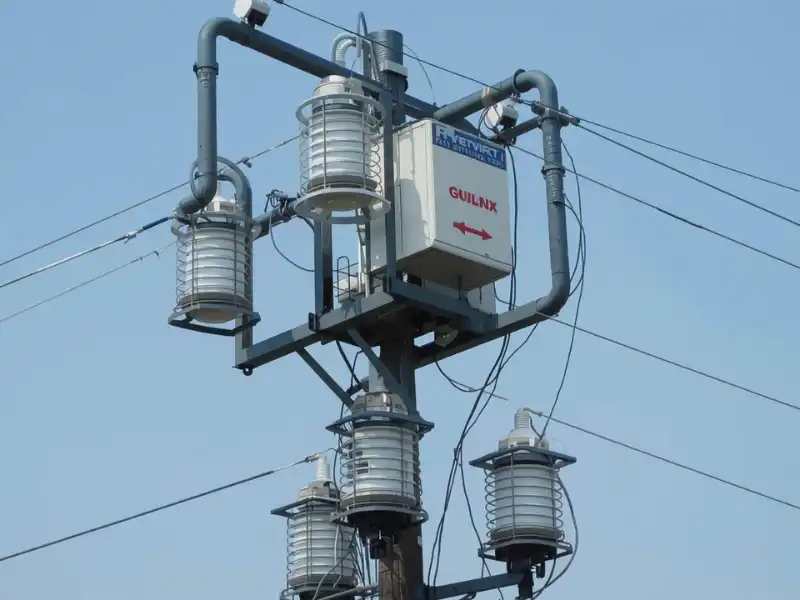

What is Electrical Load Calculation, and Why Does It Matter in Missouri?

Electrical load calculation is the process of determining the total amount of electricity your home or business will require to operate all of its electrical appliances and systems. It’s essential to calculate this load to ensure that your electrical panel and wiring can handle the required power without risk of overloading, which could cause fires or equipment failure.

In Missouri, electrical load calculations are governed by the National Electrical Code (NEC), but there is no statewide code. Each local jurisdiction adopts its version of the NEC, making it important to check local requirements when performing a load calculation.

Understanding Electrical Load Calculation Basics

Before diving into the specifics of Missouri’s electrical requirements, it’s helpful to understand some basic electrical terms:

• Electrical Load vs. Capacity: The electrical load refers to the total amount of electricity needed, while capacity is the maximum amount of power your system can handle.

• Voltage, Amperage, and Wattage: Voltage (V) measures the electrical potential, amperage (A) measures the current flow, and wattage (W) is the rate of electrical energy consumption. Together, they form the equation: W = V x A. Proper understanding of these values ensures that your electrical system can handle the required load.

Why are these calculations important? Without them, you risk overloading circuits, which could cause power outages or even fire hazards.

Missouri Electrical Code Requirements

Missouri doesn’t have a single, statewide electrical code. Instead, local jurisdictions adopt their own version of the NEC. The most commonly used versions in Missouri are the 2017, 2020, and 2023 NEC updates. It’s important to consult your local jurisdiction’s code before performing any electrical work.

• Where to check your local requirements: Missouri residents can visit their local city or county websites or contact local building permit offices for information about which NEC version applies to their area.

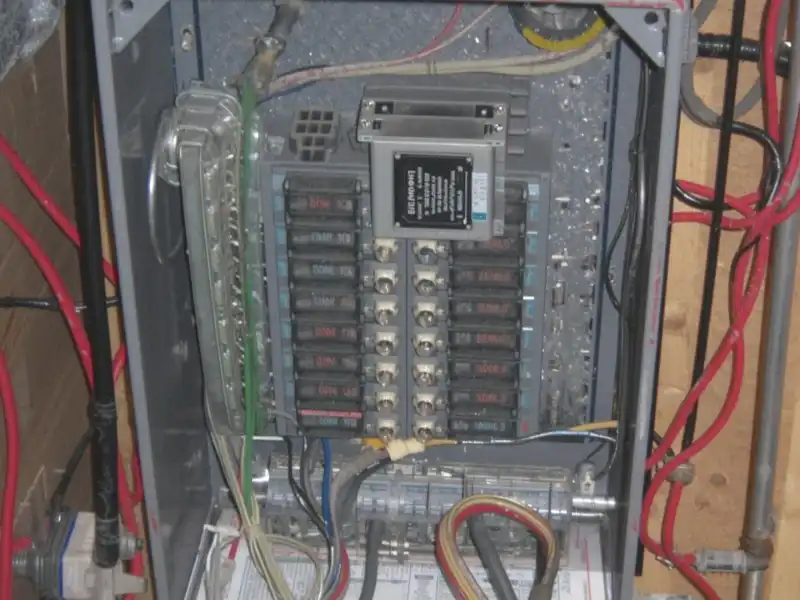

How to Calculate Electrical Load in Missouri Homes

When calculating electrical load, there are two methods: the standard method and an optional method for certain circumstances.

• Standard Method: The standard method for calculating electrical load is outlined in NEC Article 220. It takes into account the general requirements of your home, including lighting, heating, and receptacles.

• Optional Method: The NEC 220.82/220.83 method allows for simplifications for certain appliances and circuits, like heating and cooking equipment.

For both methods, the basic calculation involves considering the square footage of the house and various appliance circuits. Specific factors include:

• Square Footage Calculations: Larger homes need more power, so calculating the square footage is one of the first steps.

• Kitchen, Laundry, and Appliance Circuits: Major appliances in these areas have specific power requirements. These must be factored into the load calculation.

• HVAC and Major Appliances: Systems like air conditioners, furnaces, and electric water heaters consume significant electricity, so it’s essential to include them in your calculation.

Step-by-Step Load Calculation Example

Let’s look at a sample calculation for a Missouri home:

1. Calculate total square footage: For a 2,000 sq ft home, the base load would be 3 VA per square foot, which gives us a total of 6,000 VA.

2. Add appliance loads: This includes things like lighting circuits, laundry circuits, and major appliances such as refrigerators or stoves.

3. Factor in HVAC systems: A central air conditioning unit might require an additional 5,000 VA.

4. Total Load: By adding all the required calculations, we get a total of 15,000 VA.

When You Need a Load Calculation in Missouri

There are several scenarios where you may need to perform an electrical load calculation Missouri:

1. Service Upgrades: If you’re upgrading your service from a 100A to a 200A panel, a load calculation is needed to ensure the new panel can handle the increased load.

2. Adding Major Appliances: Installing appliances such as EV chargers, heat pumps, or even a hot tub could require recalculating your electrical load.

3. Home Additions or Renovations: Adding new rooms or spaces with electrical fixtures may increase the overall load, necessitating a recalculation.

4. Permit Requirements: In many cases, when applying for permits for electrical work, you may need to submit a load calculation to demonstrate that your system is capable of handling the increased demand.

Tools and Resources

Several tools and resources can help you calculate your home’s electrical load in Missouri:

• Free Online Calculators: Websites like the NEC calculator can simplify the load calculation process for homeowners.

• Professional Electrician Recommendations: While online calculators can provide guidance, hiring a licensed electrician ensures accuracy and safety.

• Missouri Permit Offices: If you need help with the legal and technical requirements, contact your local permit office for assistance.

Common Mistakes to Avoid

While performing electrical load calculations, it’s easy to make mistakes. Some common errors to watch out for include:

• Underestimating appliance loads: Not factoring in all the appliances, like HVAC systems or electric dryers, can lead to an inaccurate calculation.

• Ignoring local code variations: Different areas in Missouri may have specific code requirements, so it’s crucial to check with your local authority.

• Incorrect square footage calculations: Make sure to measure your home correctly and consider all spaces that need power.

Final Thought

Performing an electrical load calculation Missouri is an essential part of any home improvement project that involves electricity. Whether you’re adding new appliances, upgrading your service panel, or building a new home, accurate load calculations help prevent overloading and ensure safety. By understanding the Missouri Electrical Code requirements and using the right methods and tools, you can ensure that your home’s electrical system is capable of supporting your needs. Always remember, when in doubt, consult a professional to guarantee your safety and compliance with local codes.
